Volvo FH/FM DRL Amber Conversion Kit

Description

Volvo FH/FM DRL Amber Conversion Kit

DRL Rebuilding Kit for Volvo FH/FM (All-Series) Suitable for Volvo

FH/FM Version 4 2012-2019 (Amber)

FH/FM Version 5 2020 Onward (Amber)

Choose the desired version according to your model’s date! Complete set of yellow LED light sources to rebuild your Volvo FH’s cold white warning light. There are a total of 20 Luxeon Rebel LEDs per set, which together give up to 2000 lumens! Brightness corresponds to approximately the original brightness.

The light sources are designed as the original, with the powerful High Power LEDs placed on aluminium pressure plates. These plates increase heat transfer to the original heat sink and extend the life of the LEDs. Of course, there are original connections on all light sources, so the connection is quite simple.

Each set contains four lights and thermal paste for assembly. There are two lights on each side. The light source with six LEDs is mounted on top and the one with four light sources on the bottom.

Installation occurs as follows:

1. Remove the plugs from the original lights.

2. Remove the screws that retain the original lights.

3. Remove the lights from the heat sink.

4. Remove the cooling paste and clean the surface completely.

5. Apply the cooling paste with a thin even layer on the heat sink where the light is to be mounted.

6. Push the new light into the thermal grease and carefully tighten with the original screw.

7. Connect the cables to the new lights.

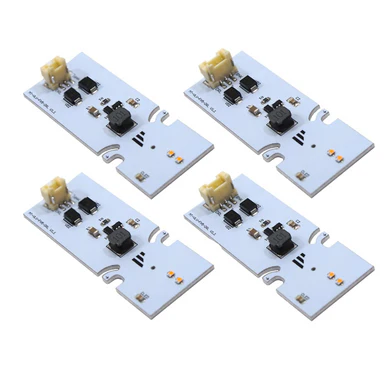

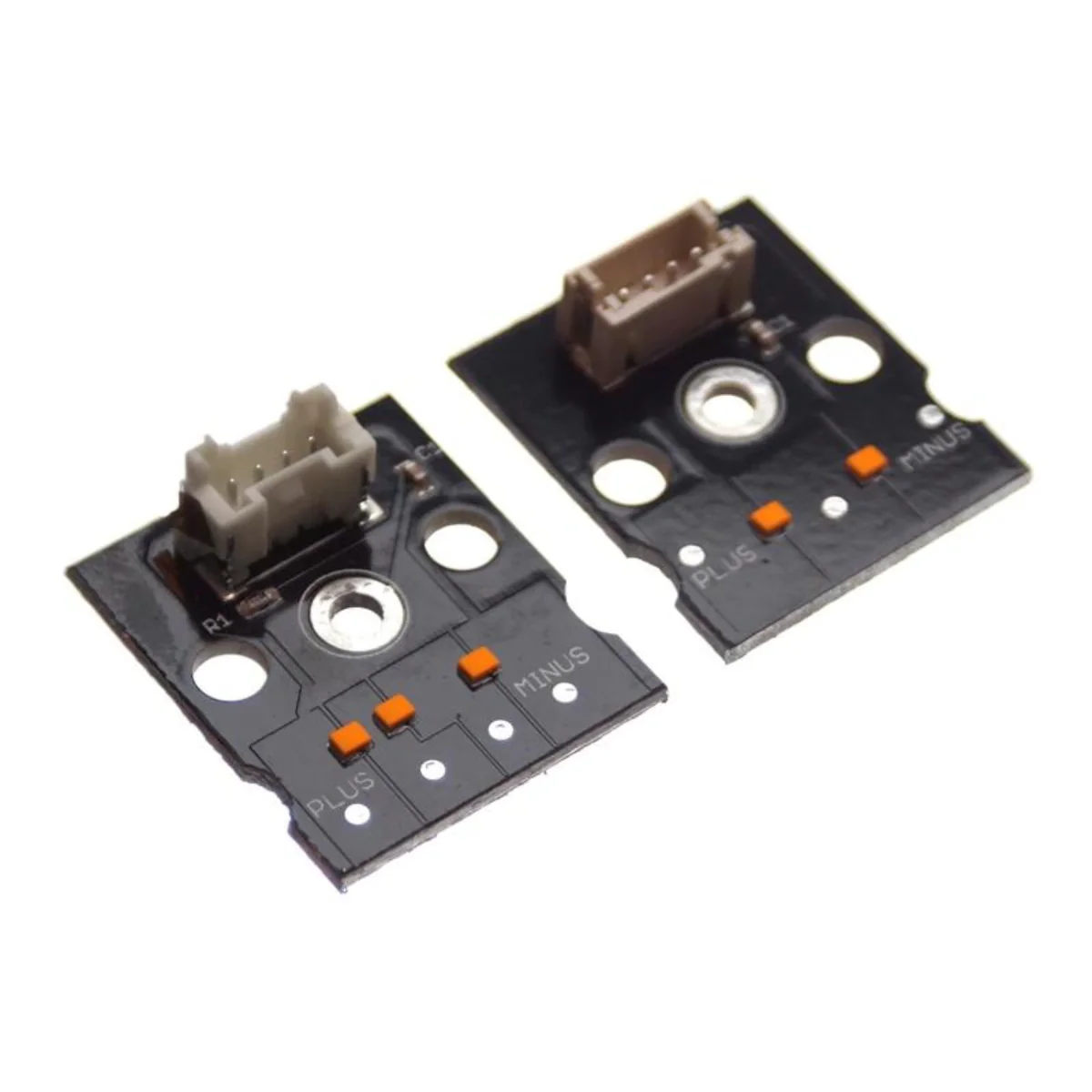

Complete DRL Conversion Kits for LED headlights. These conversion kit replaces the cold white LED DRL with yellow / orange light. The powerful high power CREE diodes provide plenty of brightness, in real “indicator orange” colour. They are mounted on aluminium circuit boards just like the original, ensuring optimum cooling and longevity in the diodes. The circuit board consists of original connectors, so the connection is pure Plug & Play. Each set contains two printed circuit boards, one right and one left and thermal paste to increase heat conduction and cooling. The original is not fitted with thermal paste, but we always recommend using it. Note that light sources are not E-approved.
