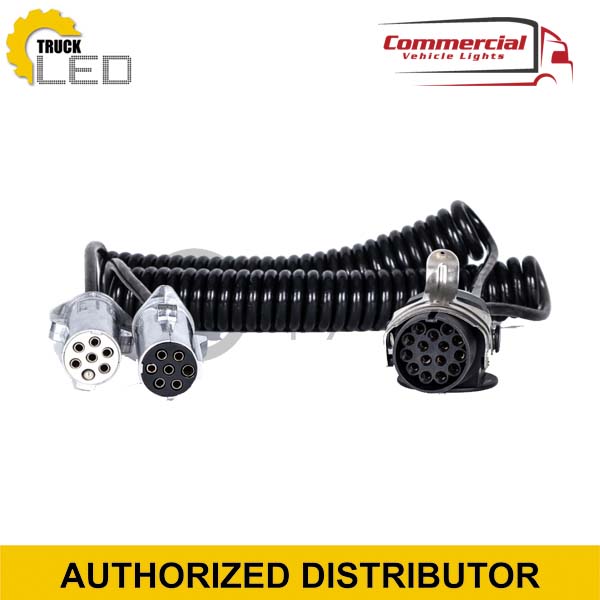

24V Single-Double Adaptor with 15/7 Pin 3.8M Cable

Description

Part number: KAM-E1570

1 x 24V Single-Double Adaptor with 15/7 Pin 3.8M Cable

The 24V adapter with a 15/7 pin 3.8m E1570 cable is an accessory designed for a comfortable connection of the semi-trailer to the vehicle. Thanks to the use of the adapter, the user can fully use the lighting functions and the braking system in the trailer. The adapter has 2 7-pin plugs – 7-pin N and 7 pin S. Below is the breakdown of the function.

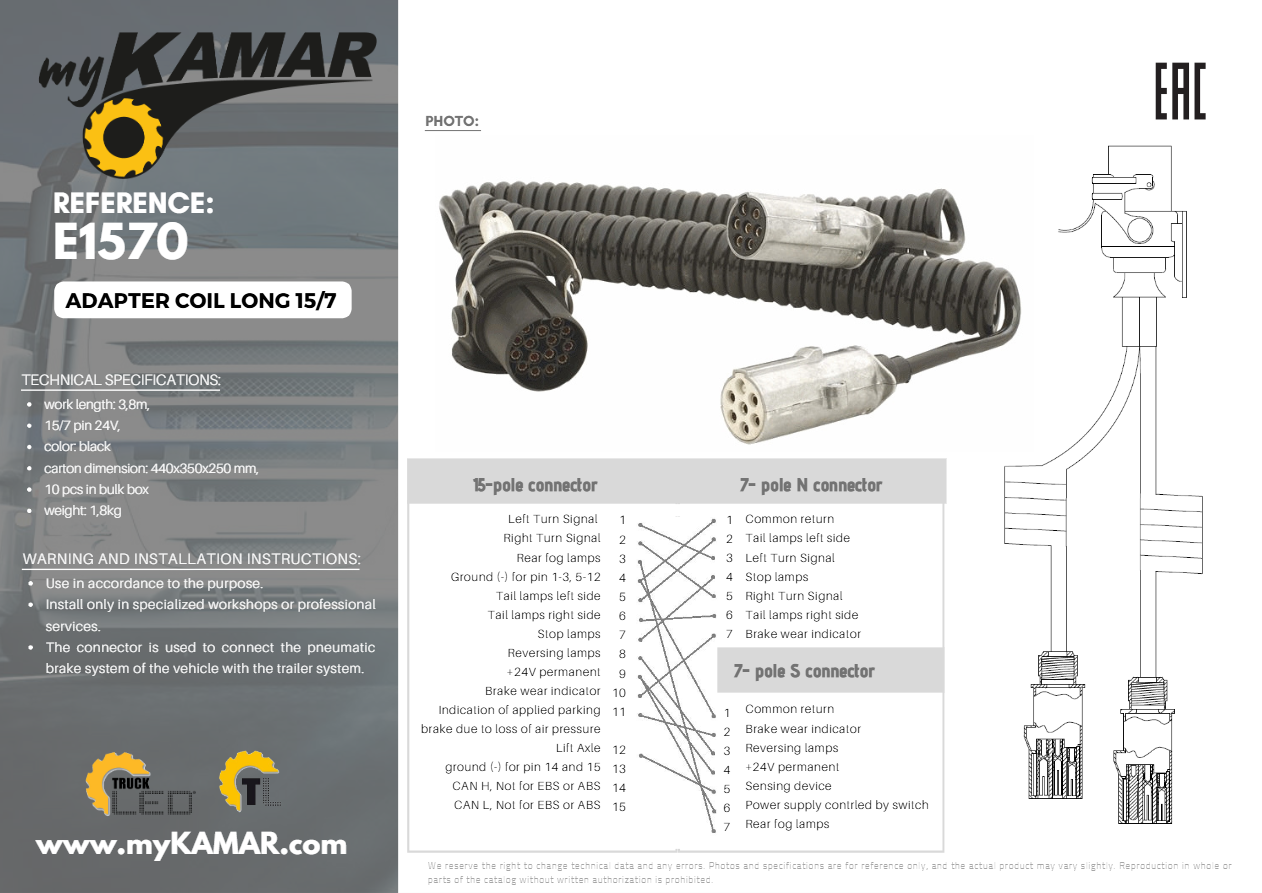

15 pin – 7 pin N:

• ground – ground for pins 1-3, 5-12

• left position – left position

• left turn signal – left turn signal

• stop – stop

• right turn signal – right turn signal

• right position – right position

• brake wear indicator – brake wear indicator

15 pin – 7 pin S:

• ground – ground for pins 1-3, 5-12

• brake signal – brake signal

• reversing light – reversing light

• +24V constant – +24V constant

• lifting axle – lifting axle

• +24V constant – +24V constant

• p/m light – p/m light

The selection of products offered by TRUCK LED are not only of the highest quality, but are also available in a variety of options to ensure you find exactly what you’re looking for. With top-of-the-line materials, cutting-edge production technologies and a highly qualified team, we guarantee complete satisfaction. In addition, all of our products offer sealed for life electronics to protect against dirt and moisture ingress, and 12/24V versatility makes our product range perfect for a wide range of commercial, specialist, construction and agricultural vehicles.

Suitable for all trucks and trailers: – Mixer, Dumper, Tipper Trucks. Heavy and Light Goods Vehicles; 20FT & 40FT Trailers; Low Loaders; Car Transporters; Skip and Tanker Lorries; Tractors & Trailers.

DAF, SCANIA, VOLVO, HINO, IVECO, MAN, MERCEDES, RENAULT, FORD FODEN, ISUZU, GMC, CATERPILLAR, JOHN DEERE, CATERPILLAR, MONTRACON, SCHMITZ, SDC AND DENNISON TRAILERS.

Our products come with a 12-month warranty and are inclusive of VAT.

All of our replacement parts are new high quality aftermarket parts unless stated otherwise. They are sourced from manufacturers to the original equipment market and have been made to the highest standards.

Rear lights are part of the vehicle lighting system and include the following:

• Tail lights

• Brake lights

• Turn signals

• Reversing lights

• Rear fog lights

Tail lights, brake lights and turn signals are used most frequently. The purpose of reversing lights is to indicate that a vehicle is moving backwards and rear fog lights provide a safety function when visibility is down to below 50 metres.

BULB LIGHTING

Buy vehicle bulbs for trucks from our 24v bulbs range, we stock a range of 24v lorry bulbs, 24v headlamps & replacement 24 volt bulb sets.

LED LIGHTING TECHNOLOGY

For instance Tail lights and brake lights benefit from the advantages of modern LED (Light Emitting Diode) technology. These include rapid switch-on for added safety: LEDs achieve full brightness as soon as they are switched on. This makes it possible to recognise braking signals more quickly and so react sooner to potentially hazardous situations. By comparison: A bulb takes a fraction of a second longer to achieve full brightness.

VALUE RETENTION

Thanks to their long life, outstanding reliability, compactness and low energy consumption, LEDs are increasingly taking over from conventional bulbs. Being virtually insusceptible to wear and requiring no maintenance, LED lights are a significant factor in terms of vehicle value retention.
