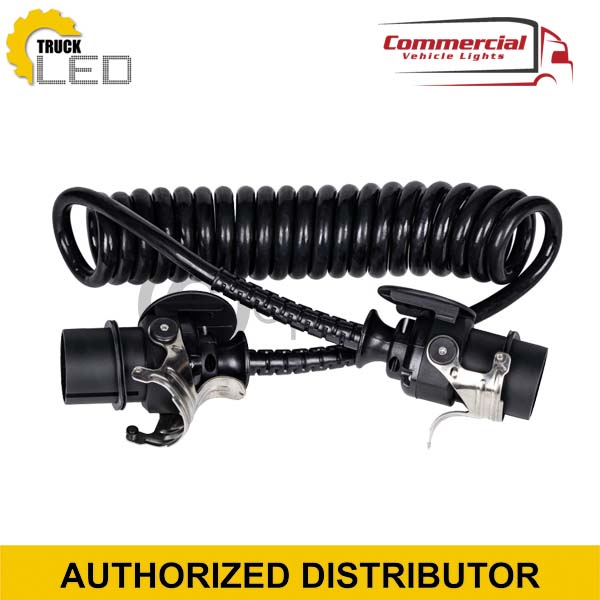

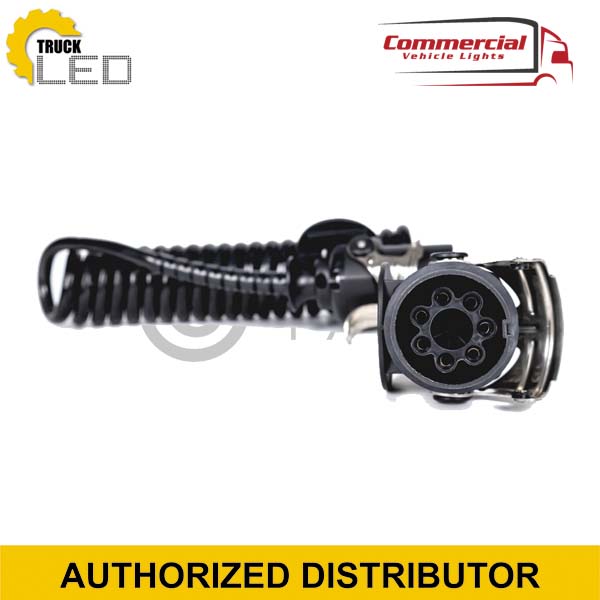

24V EBS Electric 3.8M Cable 7 Pin

Description

Part number: KAM-E1273

1 x 24V EBS Electric 3.8M Cable 7 Pin

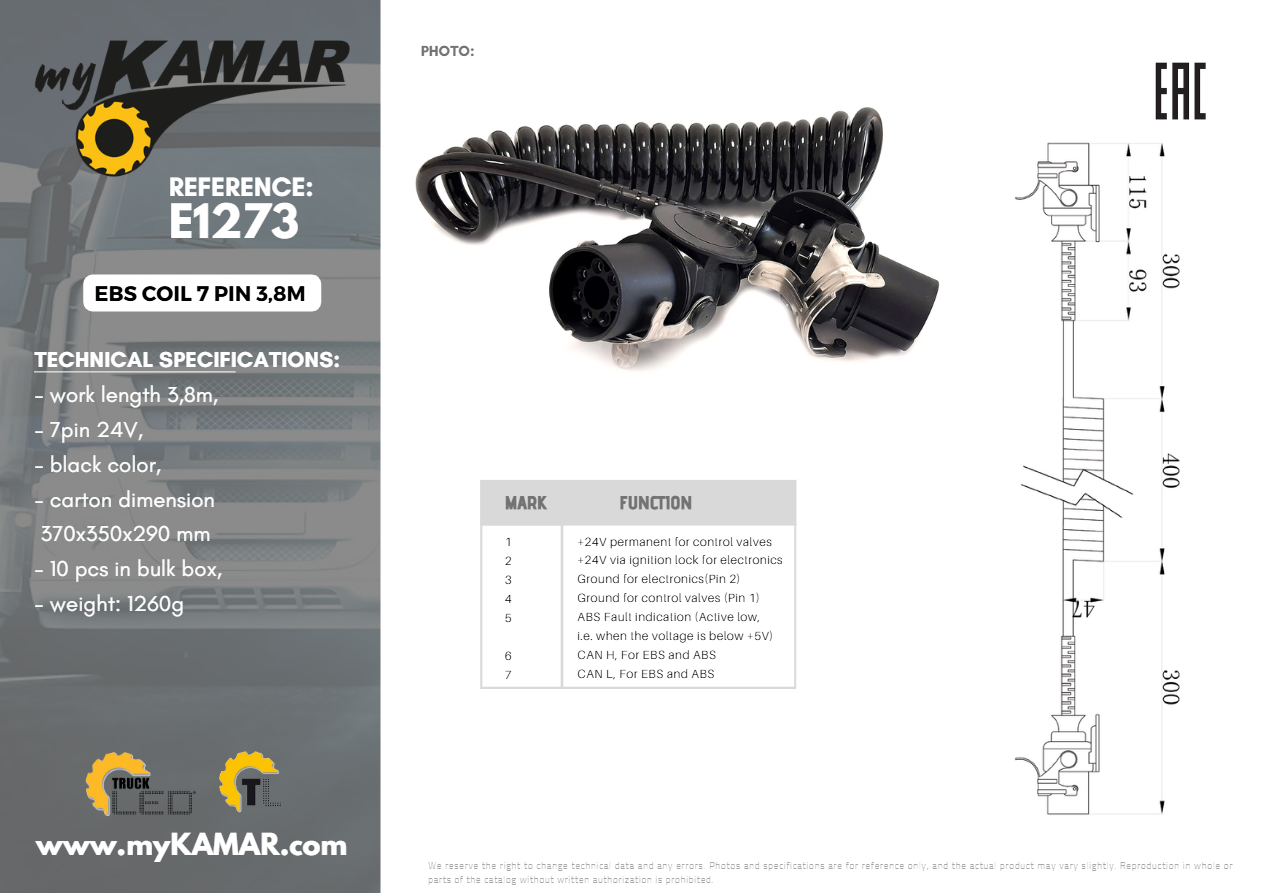

The EBS 3.8m E1273 electric cable is an element through which the user can make a solid connection between the semi-trailer and the vehicle. The connection created in this way allows the use of the braking system or lighting functions in the semi-trailer itself. The supported functions include: +24V permanent; +24V via the ignition switch; ground (pin 2); ground (pin 1); ABS failure signaling when voltage is below +5V; CAN H for EBS and ABS; CAN L for EBS and ABS.

The selection of products offered by TRUCK LED are not only of the highest quality, but are also available in a variety of options to ensure you find exactly what you’re looking for. With top-of-the-line materials, cutting-edge production technologies and a highly qualified team, we guarantee complete satisfaction. In addition, all of our products offer sealed for life electronics to protect against dirt and moisture ingress, and 12/24V versatility makes our product range perfect for a wide range of commercial, specialist, construction and agricultural vehicles.

Suitable for all trucks and trailers: – Mixer, Dumper, Tipper Trucks. Heavy and Light Goods Vehicles; 20FT & 40FT Trailers; Low Loaders; Car Transporters; Skip and Tanker Lorries; Tractors & Trailers.

DAF, SCANIA, VOLVO, HINO, IVECO, MAN, MERCEDES, RENAULT, FORD FODEN, ISUZU, GMC, CATERPILLAR, JOHN DEERE, CATERPILLAR, MONTRACON, SCHMITZ, SDC AND DENNISON TRAILERS.

Our products come with a 12-month warranty and are inclusive of VAT.

All of our replacement parts are new high quality aftermarket parts unless stated otherwise. They are sourced from manufacturers to the original equipment market and have been made to the highest standards.

Rear lights are part of the vehicle lighting system and include the following:

• Tail lights

• Brake lights

• Turn signals

• Reversing lights

• Rear fog lights

Tail lights, brake lights and turn signals are used most frequently. The purpose of reversing lights is to indicate that a vehicle is moving backwards and rear fog lights provide a safety function when visibility is down to below 50 metres.

BULB LIGHTING

Buy vehicle bulbs for trucks from our 24v bulbs range, we stock a range of 24v lorry bulbs, 24v headlamps & replacement 24 volt bulb sets.

LED LIGHTING TECHNOLOGY

For instance Tail lights and brake lights benefit from the advantages of modern LED (Light Emitting Diode) technology. These include rapid switch-on for added safety: LEDs achieve full brightness as soon as they are switched on. This makes it possible to recognise braking signals more quickly and so react sooner to potentially hazardous situations. By comparison: A bulb takes a fraction of a second longer to achieve full brightness.

VALUE RETENTION

Thanks to their long life, outstanding reliability, compactness and low energy consumption, LEDs are increasingly taking over from conventional bulbs. Being virtually insusceptible to wear and requiring no maintenance, LED lights are a significant factor in terms of vehicle value retention.
